VINCENT PHO 300 PREAMPLIFICATORE PHONO GARANZIA UFFICIALE

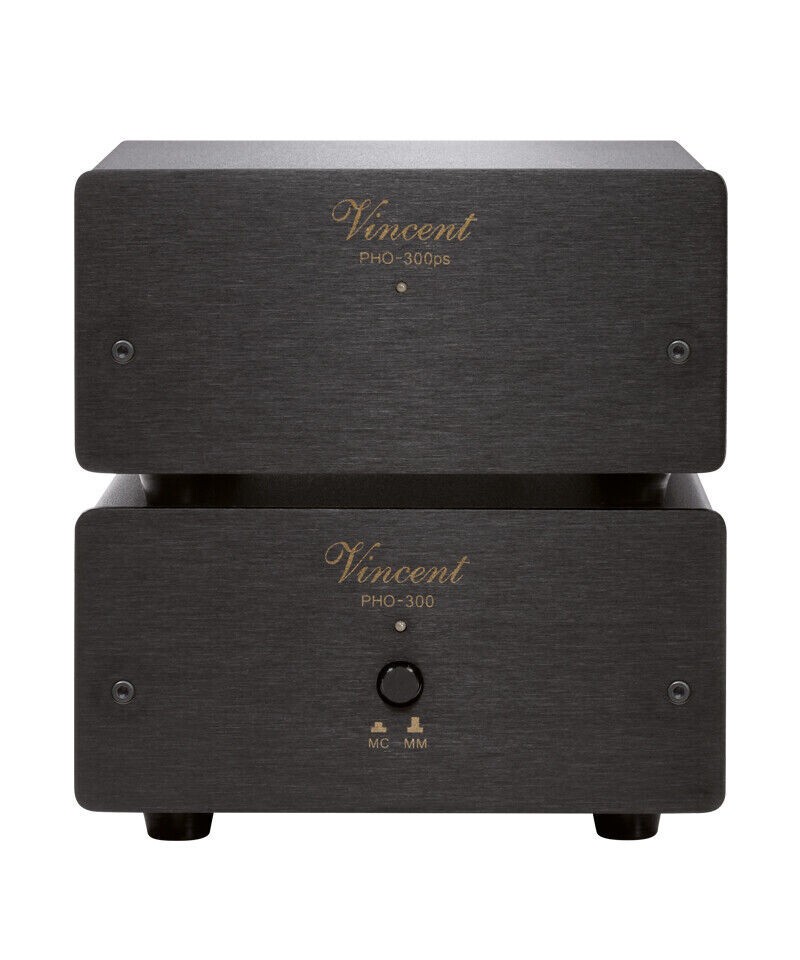

VINCENT PHO-300

High Quality phono preamplifier for connecting of a turntable to a usual line input. For the low-noise transmission of the sound signal only selected parts are used. Very complex is also the external power supply which minimizes all influences from outside.

VINCENT PHO-300 SPECIFICS

Frequency Response: 10 Hz – 20 kHz ±0.5 dB
10 Hz – 50 kHz ±2 dB
T.H.D.: < 0.05% (20 Hz - 20 kHz)
Input Sensitivity: MM: 58 mV, MC 6,8 mV
Signal-Noise Ratio: MM: > 83 dB, MC: > 70 dB
Input Impedance: MM: 47 kOhm, MC: 100 Ohm
Output Impedance: 250 Ohm
Amplification Factor: MM: 40 dB, MC: 60 dB

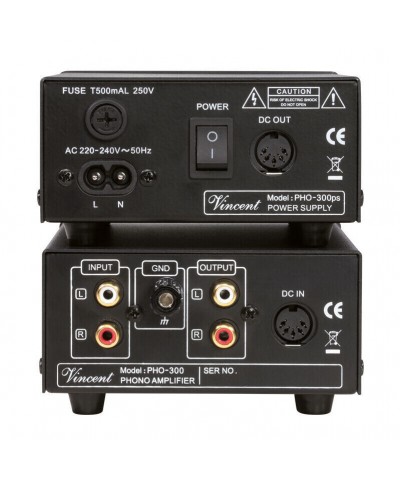

Inputs: PHO-300 1 x stereo RCA, 1x 5-pin DIN (DC IN PHO-300)
Outputs: PHO-300 1 x stereo RCA, 1x 5-pin DIN (DC OUT PHO-300ps)
Max. Power Consumption: 10 Watt
Weight: 0,9 kg (PHO-300ps), 0,6 kg (PHO-300)
Color: Black or Silver
Dimensions (W x H x D): 112 x 60 x 126 mm for power supply and
PHO-300 each
